Heavy Duty Waterproof 22mm Momentary Push Button Light Switch

Yueqing Yueshun Electric Co., Ltd.
Contact Now

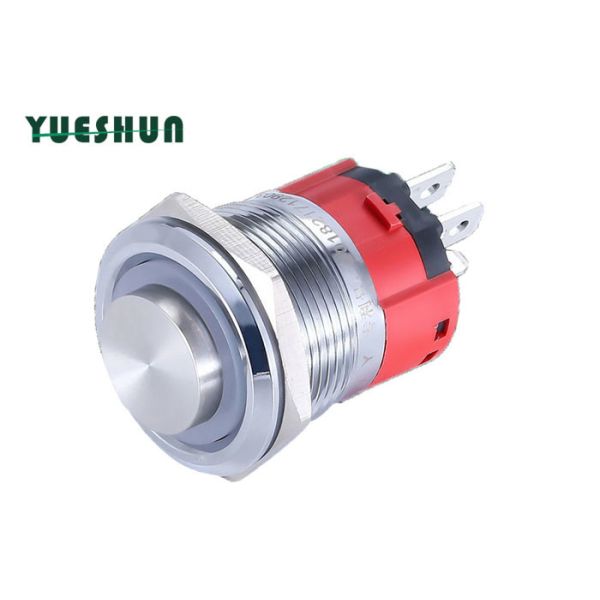

Heavy Duty Waterproof 22mm Momentary Push Button Light Switch

  • 1
  • 2

Brand Name : YUESHUN

Model Number : GQ22AH-10E

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : Blister Package+ Foam+Color box Or Upon your request

Rated Voltage/Current : 10A / 250V AC

Front head : High Round

Lamp color : Red Green Yellow Blue White

Lamp voltage : 3V 6V 12V 24V 36V 48V 110V 220V 380V

Diameter : 22mm hole size

Switch Combination : 1NO 1NC / 2NO / 2NC

Contact Now

22MM High Head Ring Logo Led Light 18Alarge Current Push Button Switch Heavy Duty Wterproof Pushbutton

Product Features

- 22mm Mounting Hole , self-lock or self reset

- 1NO 1NC / 2NO / 2NC Can be more customized to your needs.

- Ring Logo led light, Bright and uniform light, long service life.

- The high head design is easier to operate and has a mechanical life of up to 1,000,000 cycles.

Product Description
Product name 10A Large current Metal push button switch
Produstion Type GQ22AH-10E/S GQ22AH-10E/N
Body material Stainless steel Chrome plated brasss
Button material Stainless steel Stainless steel
Base material PBT PBT
Mounting hole size 22mm
Max. Current 18A
Max. Voltage 250V AC
Contact structure 1NO 1NC / 2NO / 2NC
Operation type Momentary or Latching
Head shape High Round Head
Emitting Type Ring Logo illuminated
Lamp color Red Green Blue Yellow White
Lamp voltage 3V 6V 12V 24V 36V 48V 110V 220V 380V

Product Parameter
Mechanical life More than 1,000,000 times
Electrical life ore than 200,000 times
Operating temperature -25℃- +55℃
Operating humidity 45-82%RH
Operating distance About 2mm
Operating pressure About 3N
Protection level IP67
Insulation resistance More than 1000MΩ
Contact resistance ≤ 50mΩ

Product size reference

Heavy Duty Waterproof 22mm Momentary Push Button Light Switch

F&Q

Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
- A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.

Q: What kind of payment do you accept ? Can I pay RMB ?
- A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."


Q:What are your working hours? When can I contact you?
- A:The normal working time of our customer service is 9:00-18:00 Beijing time, but if you have any questions, please feel free to contact us and we will give you a reply as soon as possible.

About our company
Our company is one of the domestic manufacturers specializing in the production of metal button switches, metal indicator lights, focus on the development of high-quality products, production and sales, as well as services.
In order to guarantee the national consumers enjoy a high standard service, the company dedicated power strictly control the quality of products.For the design of the product carefully thinking, trial and error on the performance of the products to strictly control the quality of the parts, to constantly improve production technology, the customer Suggestions continuous improvement.
We strive to explore the market demand, to find the most market demand button products, to create the most satisfied customers products, strive to walk in the forefront of the trend, strive to build Yueshun brand, brilliant Yueshuni.Welcome customers to cooperate with us.
